ABB Terra DC Wallbox 24 kW CCS2 + Chademo + Optional Mounting Plinth

1 Lot contains 1 x Wallbox EV Charger and 1 x Plinth (New in box) Photos of EV Chargers set up are samples only

Developed with leading electric vehicle manufacturers, trusted by energy suppliers and governments, the Terra DC wallbox makes fast charging safe, smart and future-compatible. Backed by 130 years of innovation and a decade in e-mobility, the DC wallbox supports the continuous advance of electric vehicles.

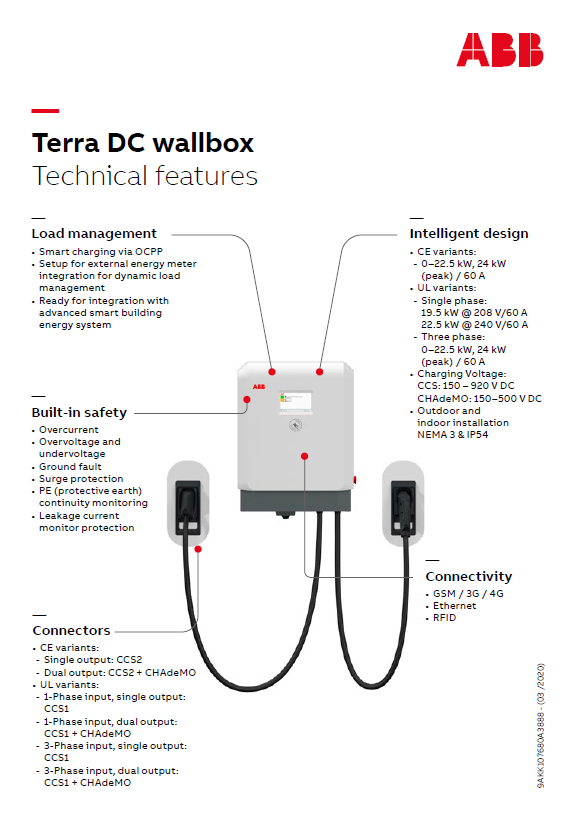

Intelligent design: compact, convenient, connected
Space-savings with easy-to-install design
User-friendly interface for convenient charging
Broad range of connectivity options

Futureproof: ROI maximized
Fully compatible with current and future EVs
Remote software updates
Smart functionality means optimized and cost-efficient charginghttps://new.abb.com/ev-charging/terra-dc-wallbox

Safety: built-in protection
Evaluated and tested to the highest independent standards
Safe for use in residential settings
Integrated ground-fault and trip protection

Load management
Smart charging via OCPP
Setup for external energy meter integration for dynamic load management
Ready for integration with advanced smart building energy system

Built-in safety
Overcurrent
Overvoltage and undervoltage
Ground fault
Surge protection
PE (protective earth) continuity monitoring
Leakage current monitor protection

Connectors
CE variants:
Single output: CCS2
Dual output: CCS2 + CHAdeMO
UL variants:
1-Phase input, single output: CCS1
1-Phase input, dual output: CCS1 + CHAdeMO
3-Phase input, single output: CCS1
3-Phase input, dual

Intelligent design
CE variants:
0–22.5 kW, 24 kW (peak) / 60 A
UL variants:
Single phase: 19.5 kW @ 208 V/60 A, 22.5 kW @ 240 V/60 A
Three phase: 0–22.5 kW, 24 kW, (peak) / 60 A
Charging Voltage:
CCS: 150 – 920 V DC
CHAdeMO: 150–500 V DC
Outdoor and Indoor

Connectivity
GSM / 3G / 4G
Ethernet
RFID

SPECIFICATIONS -

CHARGING POWER:
0 … 22.5 kW 24 kW (peak)

MAX CHARGING VOLTAGE
CCS 150 … 920 V DC
CHAdeMO 150 … 500 V DC

POWER EFFICIENCY
≥ 92 % at full power

DIMENSIONS
Height 770 mm
Width 584 mm
Depth 294 mm

WEIGHT
60 kg, excluding backplate (10 kg)
A complete set will consist across 2 pallets and will weigh a total of 154.2kgs (an estimate of 30kgs need reflected for each of pallets on top of this so rough 210kgs total).

For more info:
https://new.abb.com/ev-charging/terra-dc-wallbox
https://www.epts.lt/uploads/Products/product_4709/6AGC077814.pdf
https://chargingshop.eu/product/abb-terra-dc-wallbox-24-kw-ccs2-chademo/
